Saltwater Resistant Chrome Car Emblems Technology for Yachts
Client Pain Point (Corrosion Warranty):
A luxury yacht builder was struggling
with warranty claims. Their previous badges (sourced from a standard supplier) were pitting and green-rusting after just 6 months in
a saltwater environment. They needed a solution that met the “5-Year Saltwater Warranty” standard.
3DCUSTOMEMBLEM Engineering Solution:
We deployed our proprietary “Marine-Grade” plating protocol.
1. Â Chemistry: We utilized a Tri-Nickel process with a High-Sulfur intermediate layer to create a micro-
porous chrome surface.
2. Â Verification: We validated the batch with 96-hour CASS Testing
(ASTM B368).
3. Â Sealing: We used waterproof 3M Auto Emblem Adhesive to
prevent salt creep behind the badge.
#3D Metal Nameplates & label customization | Emblem
#WhatsApp: +8615867863626

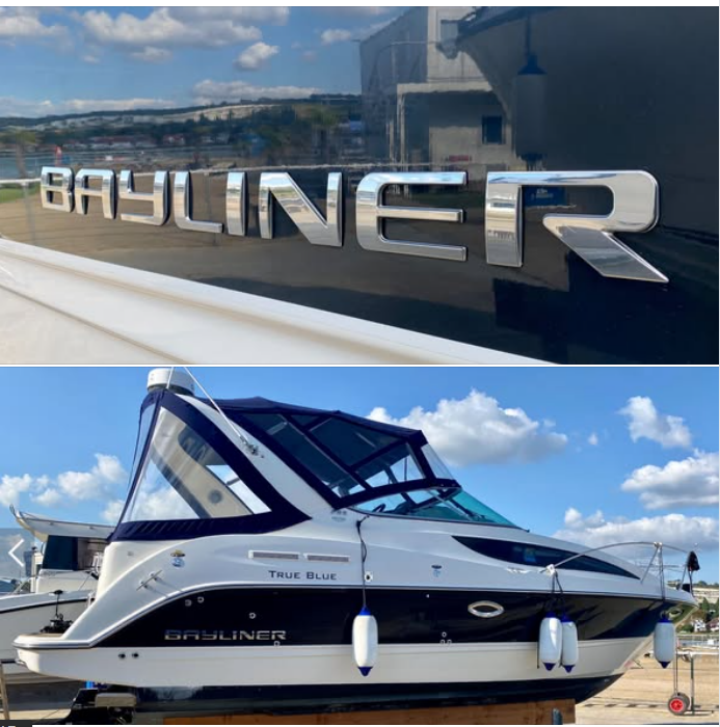

Examples of different scenes
Products details
Technical Specifications
| Parameter | Specification & Details |
| Product Category | Custom Chrome Badges (Marine Grade) |
| Material | ABS Plastic (Marine Spec) |
| Finish | Micro-porous Chrome (Anti-Corrosion) |
| Industry Standard | ASTM B368 (CASS Test), ISO 9227 (Salt Spray) |
| Dimensions | 1100mmx100mmx7mm |
| Working Condition | Saltwater, High UV, Humidity 100% |
| Service Life | 8+ Years (Marine Outdoor) |
| Installation | Waterproof 3M Auto Emblem Adhesive |
certification

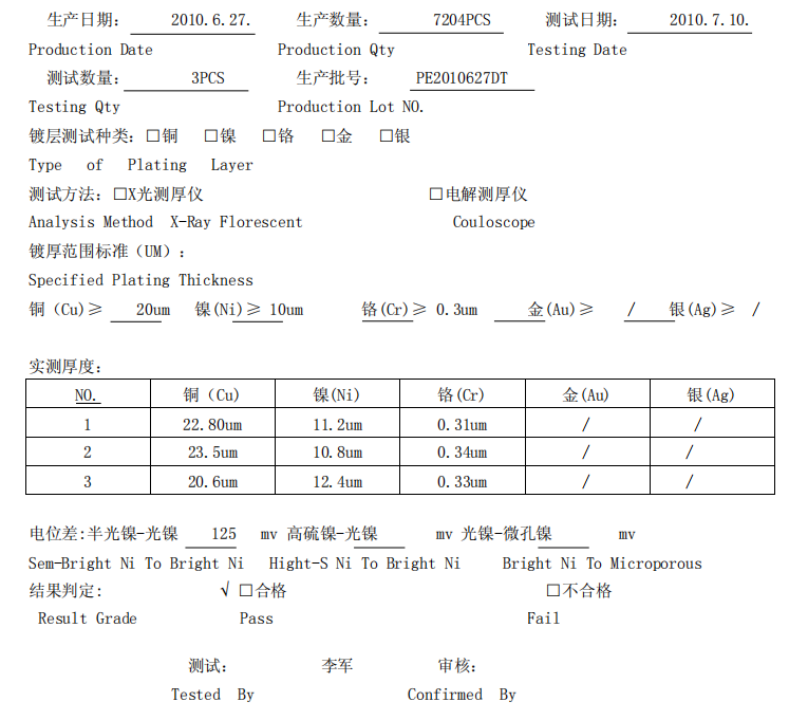

[Test Report] Snapshot of the quality specification
FAQ: Sourcing Strategy (Low MOQ)
Engineering Q&A: Logistics
Q: How do you prevent damage during shipping for plates with studs?
A: Studs can scratch other plates. We utilize custom Egg-Crate Packaging (Blister Trays) to guarantee zero-defect arrival for high-value cosmetic parts.
